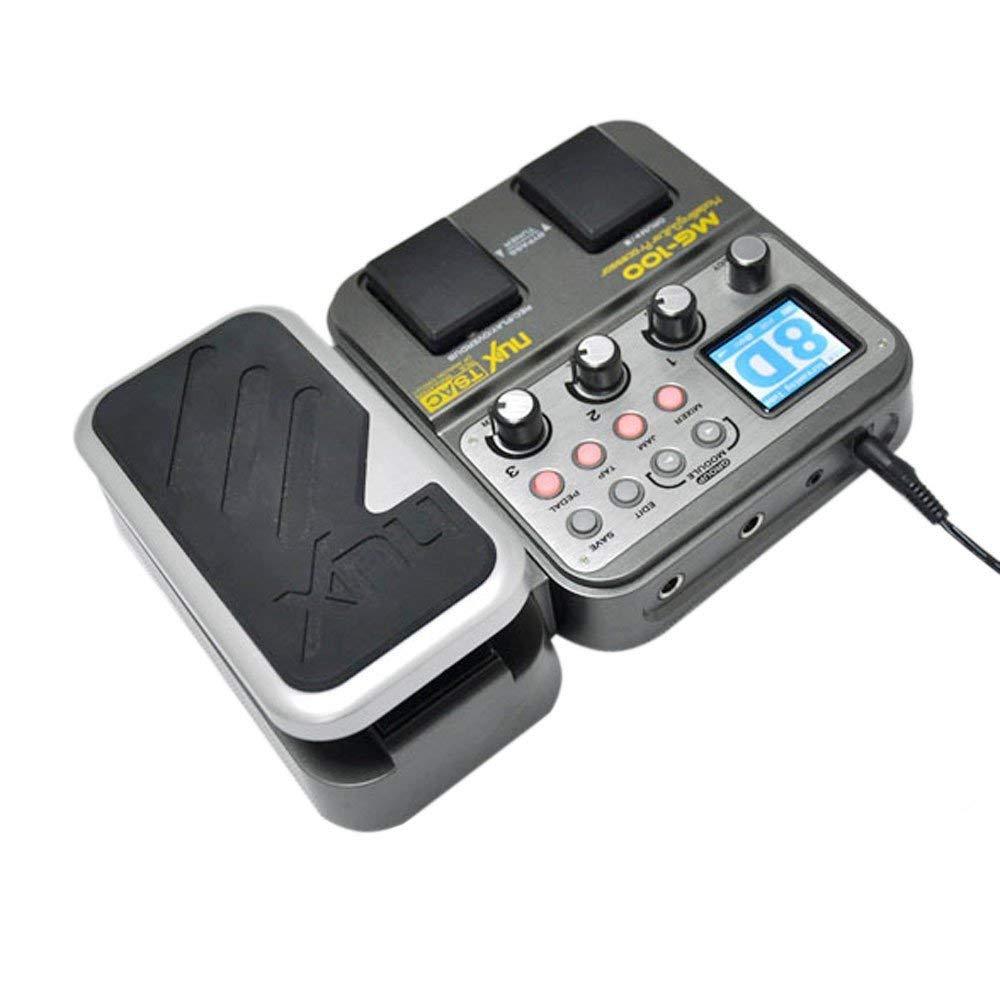

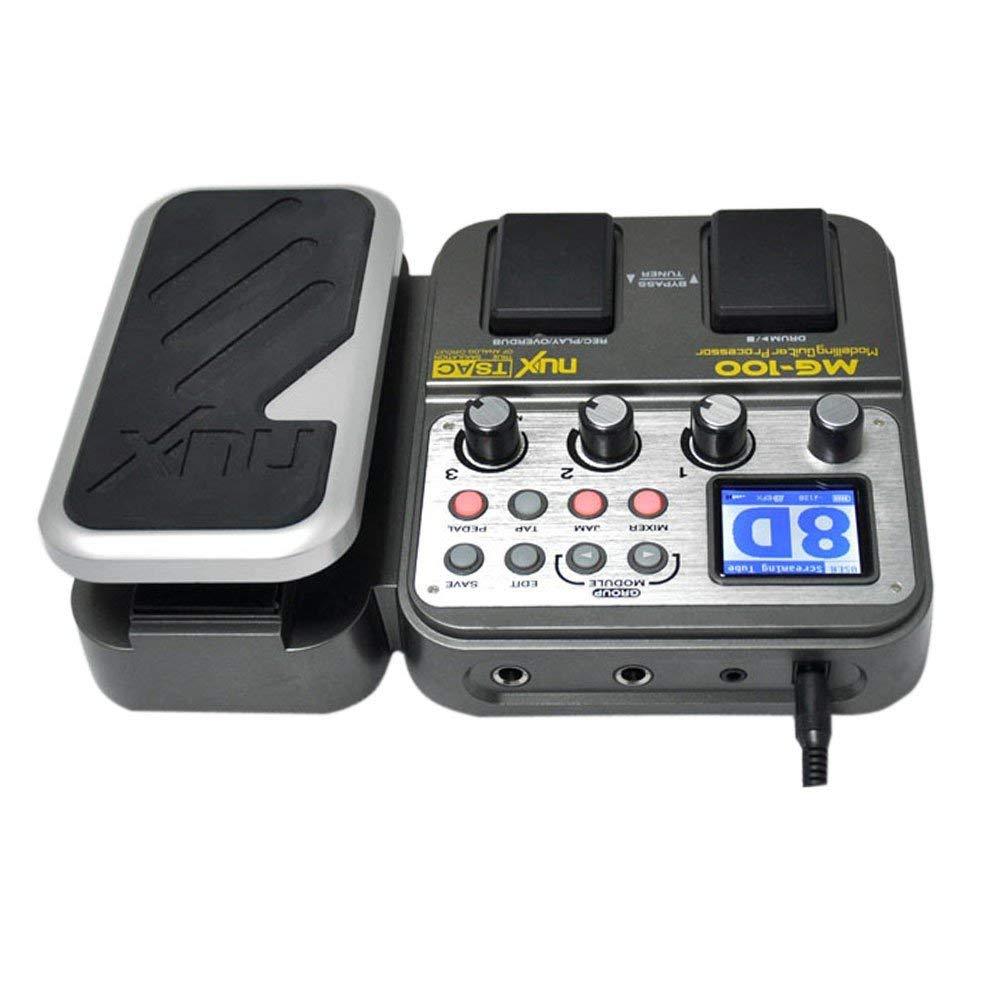

NUX MG-100 Multi-Effects Processor Guitar Effect Pedal

Description:

Effect types: 58
Effects: Max. 8 simultaneous (MODULE)s
Preset memory User settings:4 Presets (A-D) ¡Á 9 (1-9) groups = 36
Factory setting: 4 Preset (A-D) ¡Á 9 (F1-F9) groups = 36
Sampling Frequency : 44.1 kHz

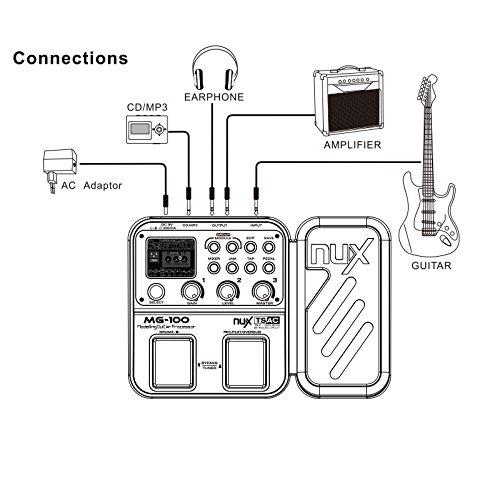

Jacks: INPUT, OUTPUT, AUX IN, DC IN
AD/DA converter: 24-bit
Signal processing: 32-bit
Frequency response: 20Hz ¨C 20000Hz ¡À1dB
THD + N: -93dBu (<0.003%)
Dynamic Range: 110 dB
Display: 160¡Á128 TFT LCD
INPUT: -20dBV@ 1M?
OUTPUT: -10dBV (Output load impedance of 10k? or more)
AUX IN: -10dBV @ 10k or more
Headphones: 20mW+20mW (into 32? load)
Power: 9V DC, 300mA, ACD-007A? (pin negative)
Accessories: Owner¡¯s Manual, power adaptor

The MG-100 has so many features, its hard to name them all. BUT, here they are!!

• A total of 58 effects ; up to 8 can be used simultaneously
• 13 classic amp models via Cherub's TS/AC technology
• Vintage 3-band passive EQ modeling for every amp model
• 6-band graphic EQ designed specifically for electric guitar(120Hz,250Hz,750Hz,1.6kHz,3.2kHz,6.4kHz)
• 11 cabinet models
• Seamless and quick preset switching
• Built-in drum machine with CD quality PCM sounds
• Up to 40 seconds phrase loop with sound on sound adds more playability
• Tap tempo control for time based effects and drum machine
• Loop sounds can be played with drum machine¡¯s rhythm beat synchronously
• The AUX IN jack makes it easy to practice along with MP3, CDs and other inputs
• The expression pedal lets you adjust the volume or effect parameters in real time
• Large color TFT LCD panel (160 x128), graphic interface making the overall operation easy and intuitive
• A total of 72 presets, 36 factory + 36 user presets
• New generation 32 ¨C bit DSP, high performance 24Bit 44.1kHz AD/DA converter
• Runs on batteries and AC adaptor (ACD-007A). Six AA/LR6 alkaline batteries all up to 8 hours of continuous use.
